Configuring machines by hand does not scale
Installing Windows, drivers, business applications and the right settings on a single workstation takes a few hours. Repeating that manually on 20, 50 or 100 workstations, hoping each one ends up configured exactly the same way, quickly becomes untenable, and every configuration difference between two machines is a potential source of bugs or security gaps that will have to be diagnosed later, one machine at a time.
The master image principle
A master image is a fully configured reference workstation (operating system, drivers, standard applications, settings), frozen and then copied as is onto every machine in the estate. The configuration work is done only once; each subsequent deployment consists of copying the image, not reconfiguring from scratch. This is what makes it possible to deploy an estate of several dozen workstations in a few days rather than several weeks.
What imaging really saves

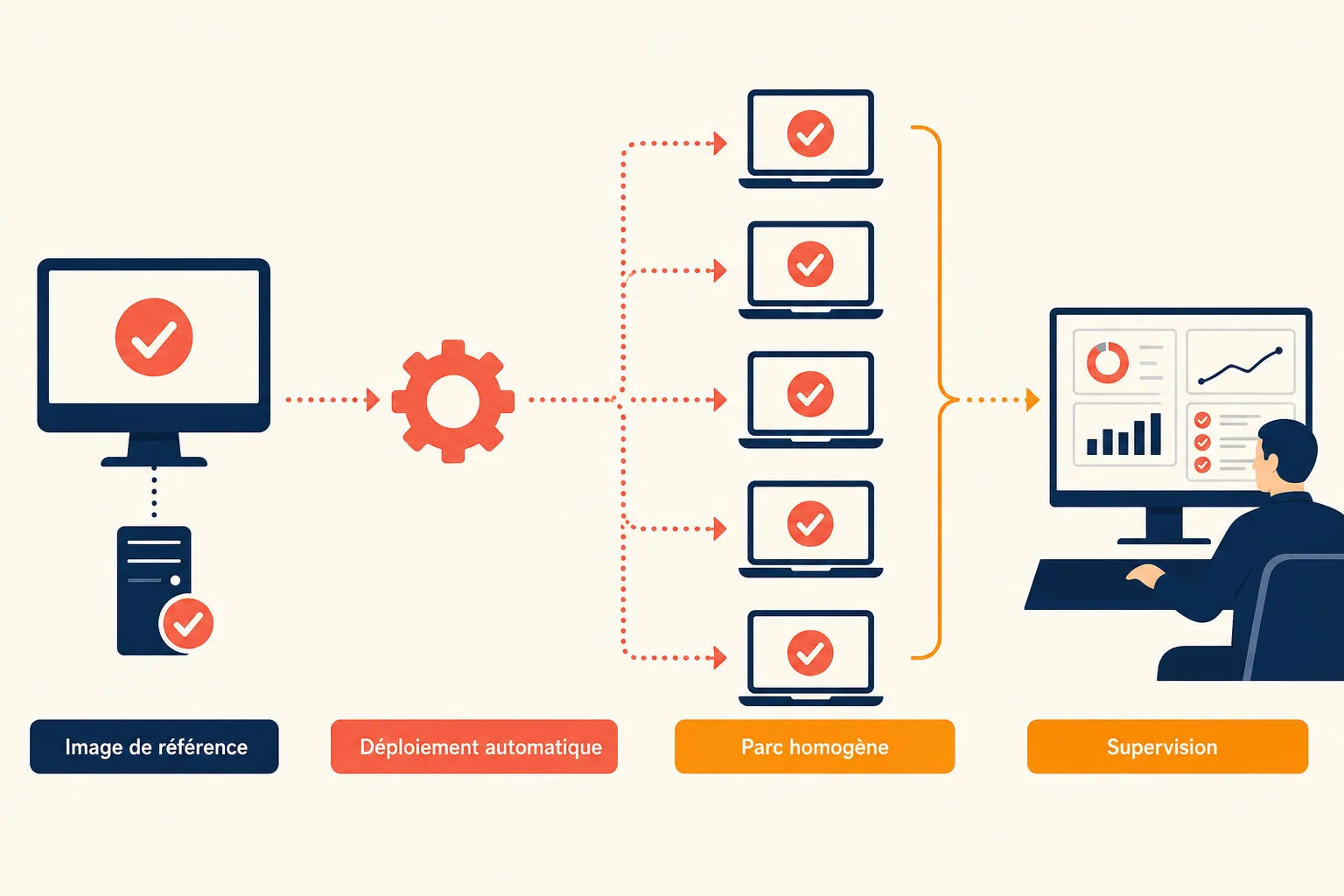

The benefit of imaging goes beyond simple speed: once the captured image is loaded onto the deployment infrastructure, it is copied automatically to every connected workstation, without the technician having to walk round each machine for an individual installation. This change of scale explains why a small IT team can deploy an estate of several dozen workstations without spending entire weeks on it.
The context that makes this gain especially valuable: the time staff lose every day because of small technical problems, often put at around twenty minutes a day in productivity studies, ends up amounting to several working days per person per year. Much of this friction comes from inconsistent or poorly controlled configurations, exactly what a standardised master image eliminates at the source.
The pitfalls of imaging done right
Imaging looks simple in principle, but it has pitfalls well known to those who practise it. The first lies in the generalisation step: done badly, it leaves unique identifiers duplicated across the whole estate, which causes conflicts that are hard to diagnose later. The second concerns drivers: an image built on one machine model does not necessarily contain the drivers for another, and a workstation deployed without the right network or storage driver starts badly, or not at all.

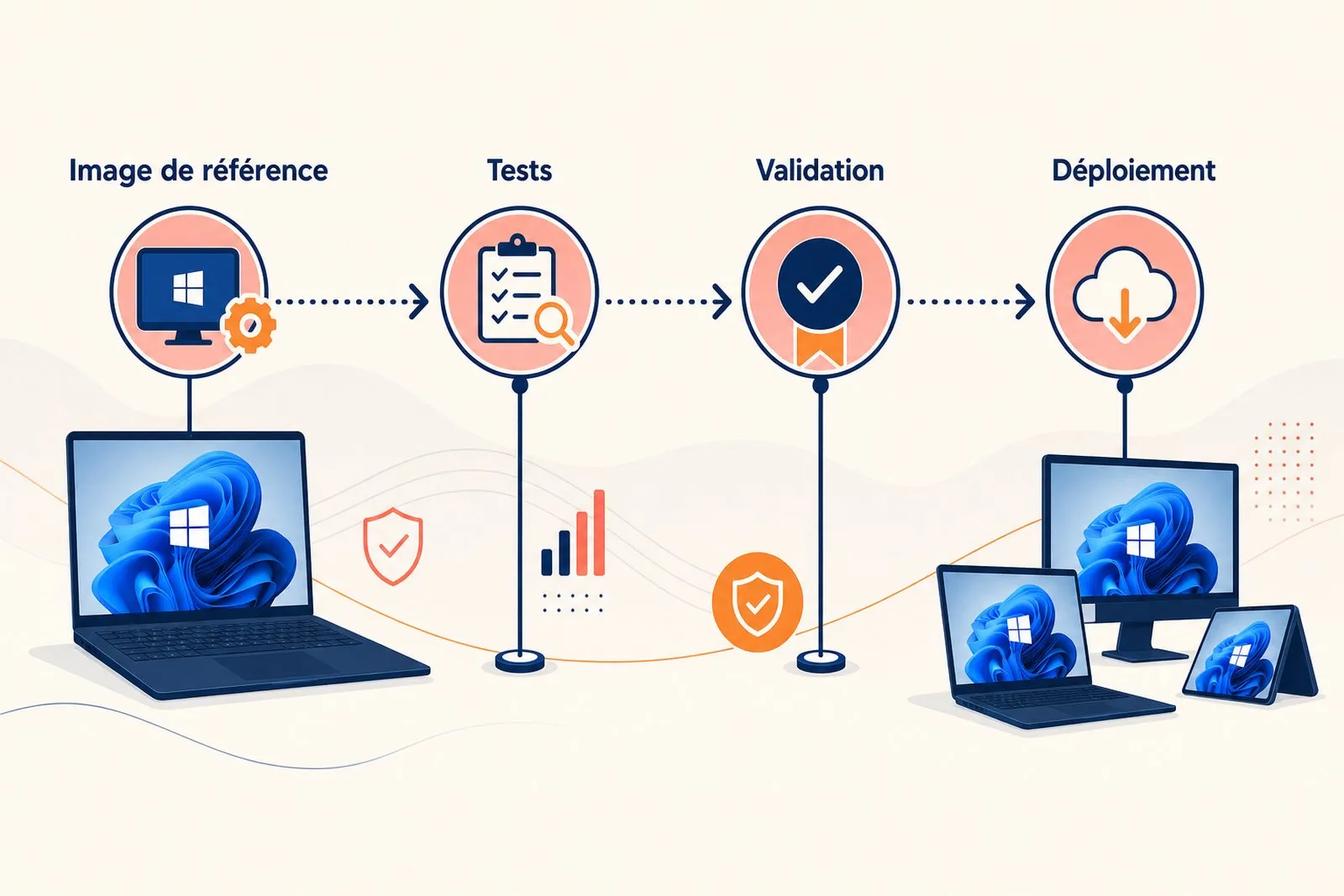

The third pitfall is applications that do not survive duplication: some software, particularly software tied to a hardware licence or a machine identifier, must be installed after deployment rather than frozen into the image. It is precisely to avoid these traps that an image should be built and tested on validation machines before any wider roll-out, by someone who knows these pitfalls from having already run into them.
A good time to harden, not just deploy
Building a master image is also the ideal opportunity to apply a security baseline: disabling obsolete protocols, switching off unnecessary services, enabling encryption by default. Because this work is done only once on the image (not machine by machine), the marginal cost of hardening becomes almost zero once the image is built, whereas the same work done after the fact, on an estate already deployed, requires intervening on every machine. In other words, building the image is the cheapest moment in the whole life of the estate to raise its level of security.
Master image or Autopilot, two routes to the same goal
Both approaches meet the same need (deploying an estate consistently) with different philosophies, and the 2026 context weighs increasingly in favour of the cloud: according to a March 2026 survey, 48% of deployments are now fully cloud-based and 40% hybrid, the end of Windows 10 support in October 2025 having accelerated the move to Windows 11 and cloud management tools.
Classic master image: fast deployment in volume, no cloud dependency, full control; but the image must be maintained and updated manually.
Windows Autopilot with Intune: no image to maintain, automatic configuration at first sign-in, compliance tracked continuously; but it depends on the cloud, and part of the older hardware fails the compatibility checks (TPM 2.0, Secure Boot).
The classic master image suits fast deployments in volume on identical hardware, or environments that do not depend on the cloud to manage their estate. Windows Autopilot with Intune has become the reference for estates managed over time from the cloud: no image to maintain, machines configure themselves automatically at first sign-in, and compliance is monitored periodically (see our Microsoft 365 and Intune service).
In both cases the principle is the same: configure once, apply everywhere.
Autopilot, the cloud version of the same principle
Windows Autopilot follows a logic similar to classic imaging, but without an image to maintain: configuring ten new workstations or replacing twenty during a hardware refresh takes the same administrative effort as configuring just one, with an estimated saving of at least one hour per machine compared with manual configuration. A company can thus ship a new computer directly to a new employee, who switches it on on their first day and finds it already configured, connected to Microsoft 365 and compliant with the defined security policies, without a technician ever having to touch the machine.
Have the image built, deploy it yourself
If your company has its own IT team, there is no need to outsource the whole deployment: having the image designed by an external provider and then deploying it yourself lets you keep control of the timetable while benefiting from an image built and tested by someone who knows the common pitfalls (missing drivers, sysprep run incorrectly, applications that do not survive generalisation). It is also a service that lends itself well to remote delivery.
Hardware and application compatibility must be checked for the exact scope of your estate before any wider roll-out, especially if part of the hardware is old: the TPM 2.0 and Secure Boot compatibility failure rate observed on ageing estates justifies a systematic check before launching a large-scale deployment.
The case of mixed hardware
One reservation should be made: the classic master image delivers its full value on a homogeneous estate, made up of identical or similar machines. On a very heterogeneous estate, where several models and generations of hardware coexist, a single image soon runs into driver differences, and maintaining it becomes a headache. In that case, dynamic driver injection, or a move to Autopilot that does away with the image, often proves easier to sustain over time. The right choice therefore depends as much on how uniform the estate is as on its size: the more varied it is and the longer it is managed, the more the cloud approach regains the edge; the more homogeneous it is and the larger the volume deployed, the more the master image keeps its own.
We offer Windows master image creation, with an optional hardening baseline, tested on validation machines and delivered with its deployment documentation. See also Windows Server 2025 is available. Contact us to assess your needs.
